Details

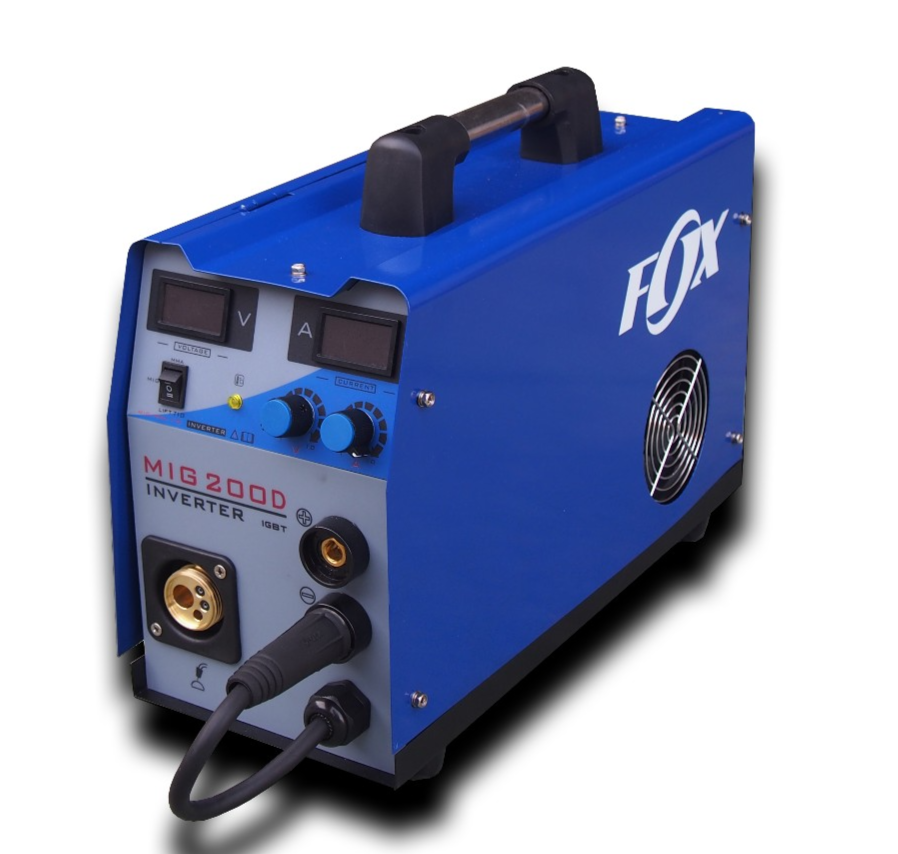

GMAW (MIG) Welding Machine MIG-200D
| SPECIFICATIONS | UNIT | MIG-200D |
| Input Power | V | 220 (220 - 240) |
| Frequency | Hz | 50/60 |
| Function | MIG / MMA / Lift TIG | |
| Rated Input Current | A | 30 |
| Rated Input Capacitance | KVA | 6.6 |
| No Load Voltage | V | 82 |
| Output Voltage | V | 15 - 28 |
| MIG Welding Current | A | 50 - 200 |
| MMA Welding Current | A | 20 - 160 |
| Rated Duty Cycle | % | 60 |
| Welding Current (10min) | A | 30%@160 |
| Post Flow Time | SEC | 1 |
| Efficiency | N | 85% |
| Power Factor | Cos | 0.75 |
| Insulation Class | F | |
| IP Rating | IP | 21S |
| Cooling Type | Fan Cooled | |
| Dimension (L x W x H) | MM | 410 x 165 x 260 |
| Weight | KG | 8.5 |
